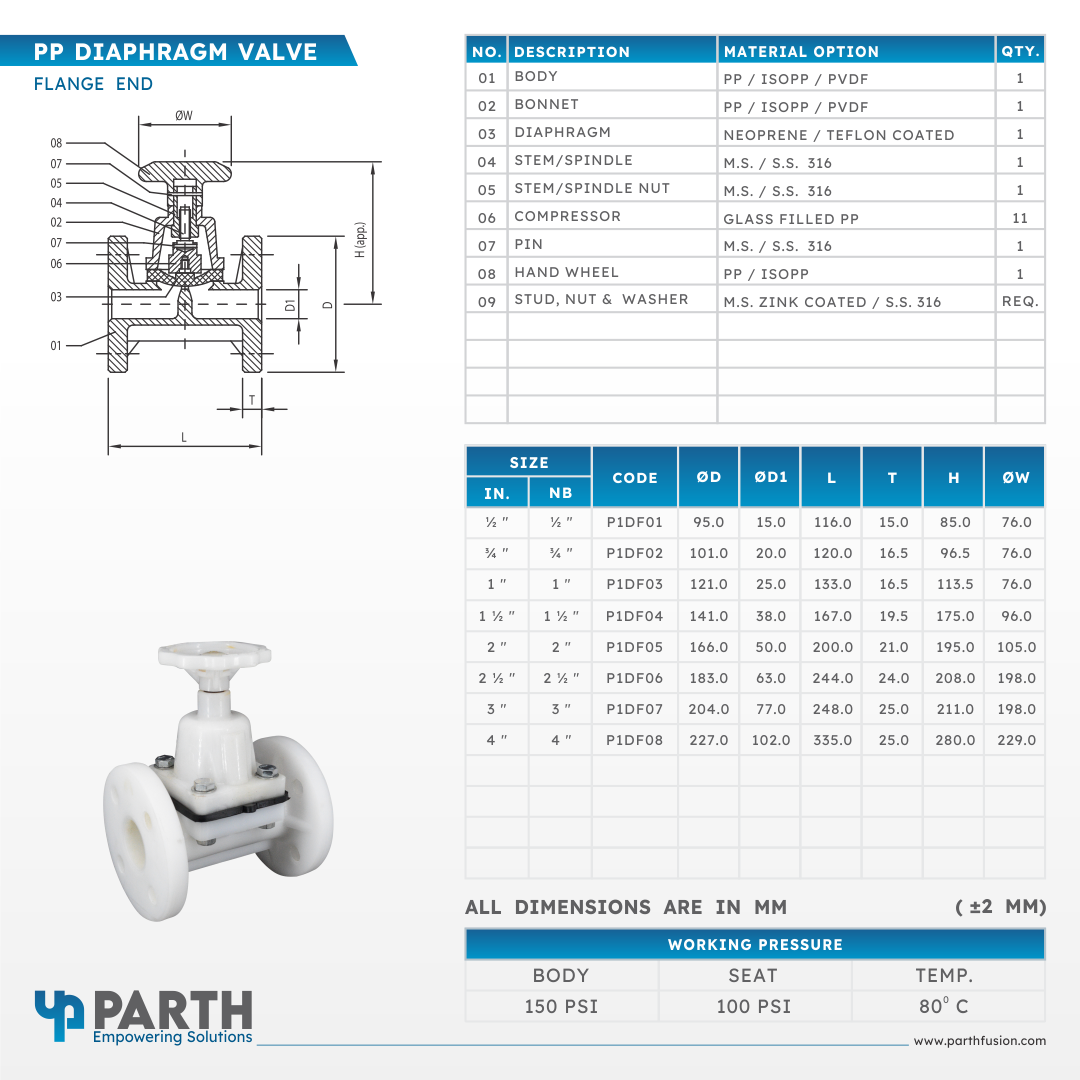

DIAPHRAGM VALVE – FLANGE END

MOC – PP (Polypropylene) / ISO-PP (Isotactic Polypropylene) / HDPE (High-Density Polyethylene) / PP-H (Polyethylene – Homopolymer) AND PVDF (Polyvinylidene Fluoride)

Construction: Weir-type design, Soft seated, Raising stem

Design And Manufacturing Std.: As per the Manufacturer’s Standard

End Connections: Flanged as per ANSI B 16.5 (ASA 150) as per BS 10 (Table D/E/F) & DIN STD

Available Size: 1/2″ (15 NB) to 4″ (100 NB)

Note: We will also provide alterations in: • SS 316 Parts (Stem, Fasteners) • Glass Filled Ball, PVDF Ball, • ISO-PP + SS • ISO-PP + PVDF • EPDM / Viton Rubber and PTFE coated Rubber. Valves may have our old “PARTH” brand logo.
