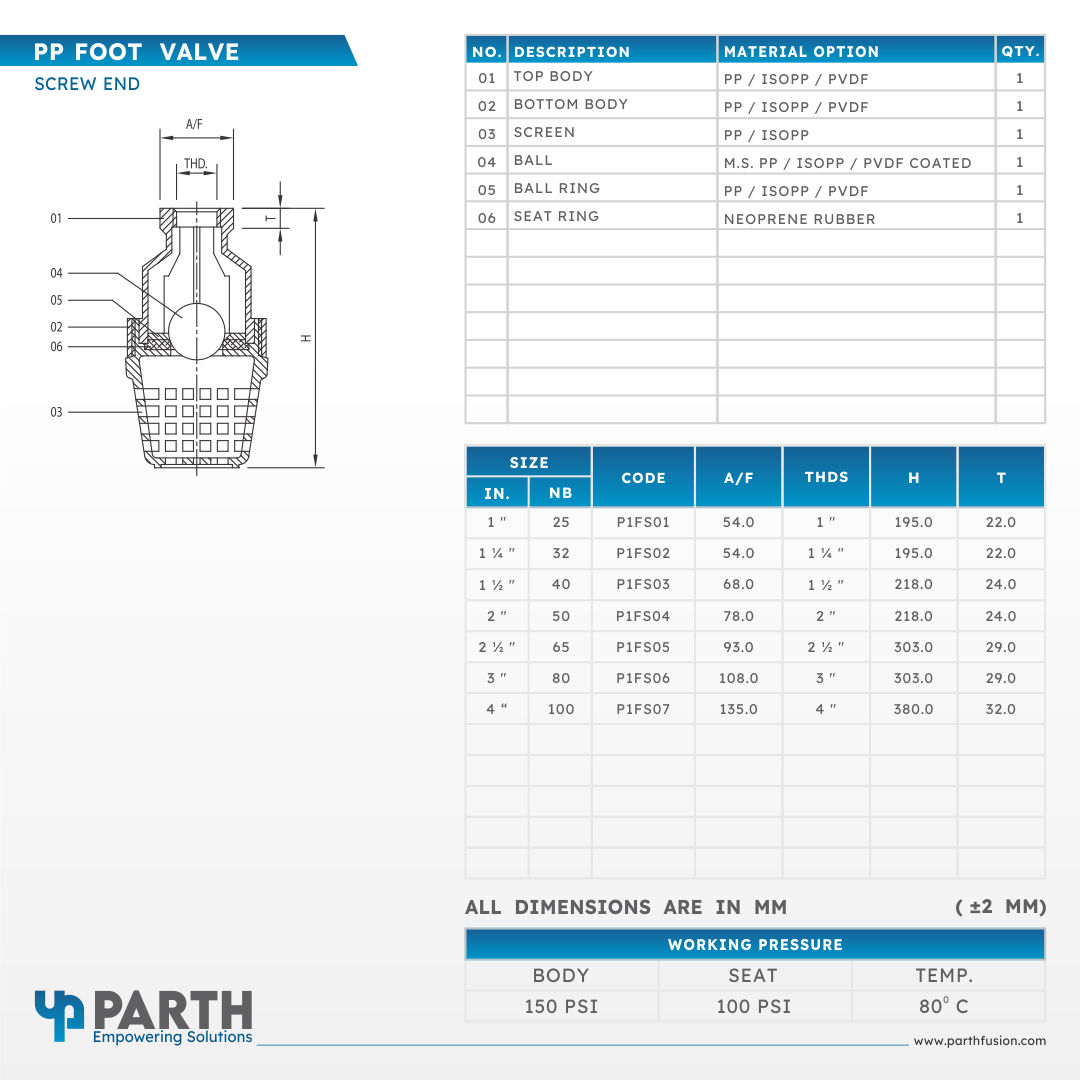

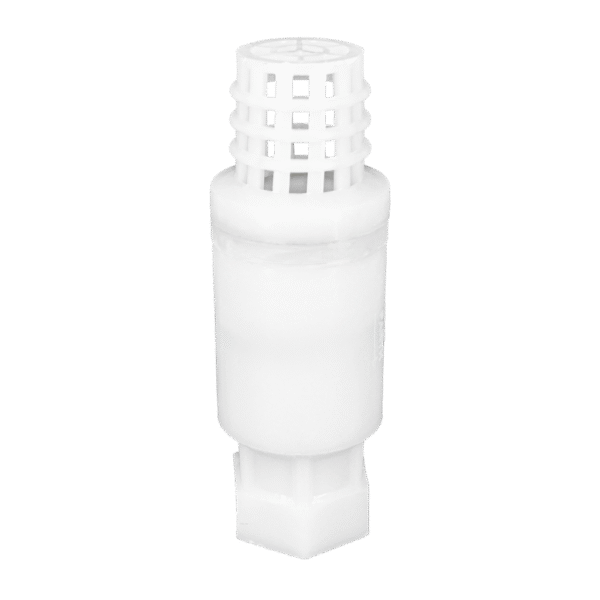

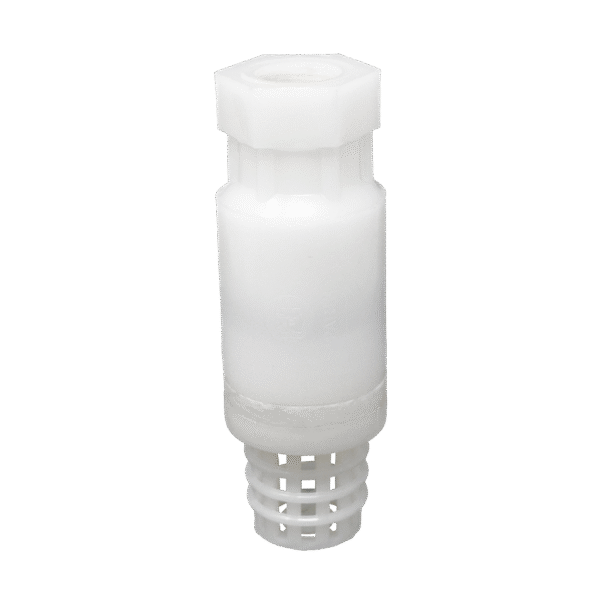

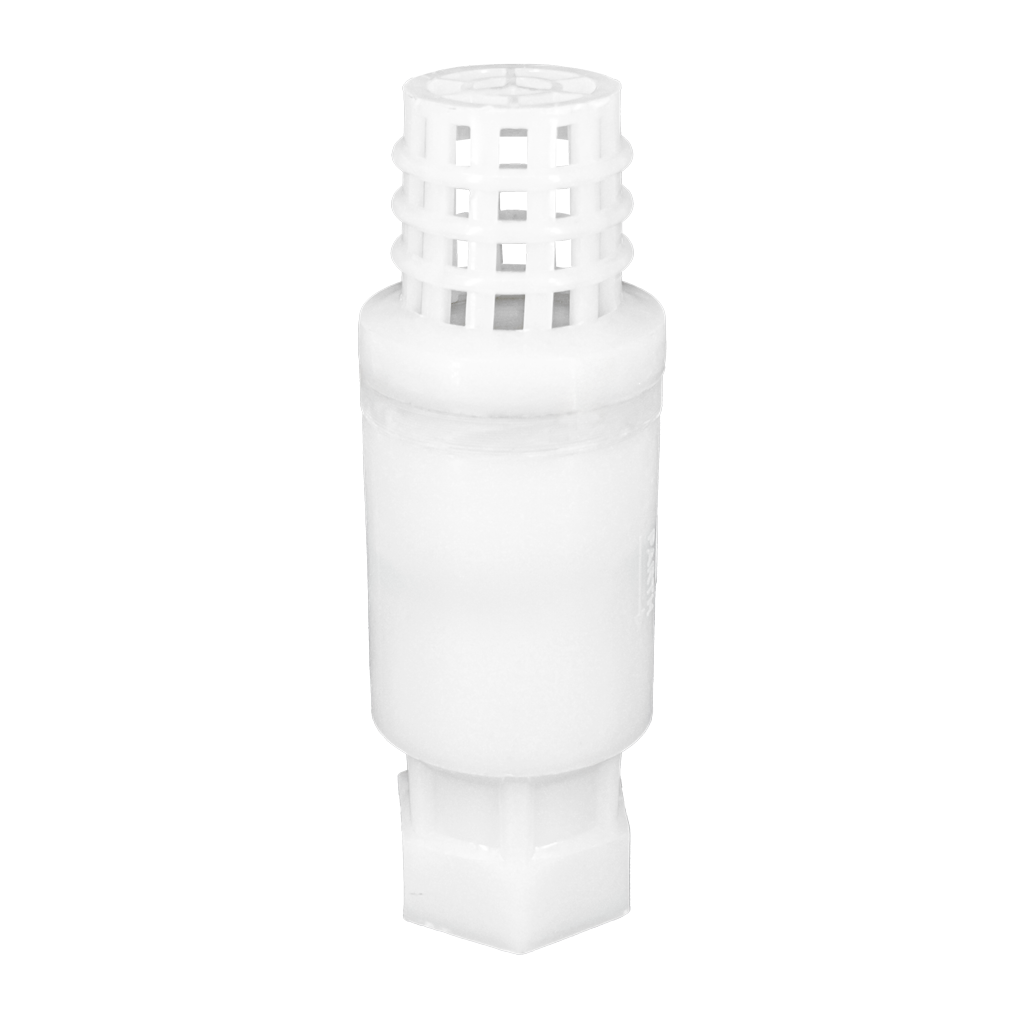

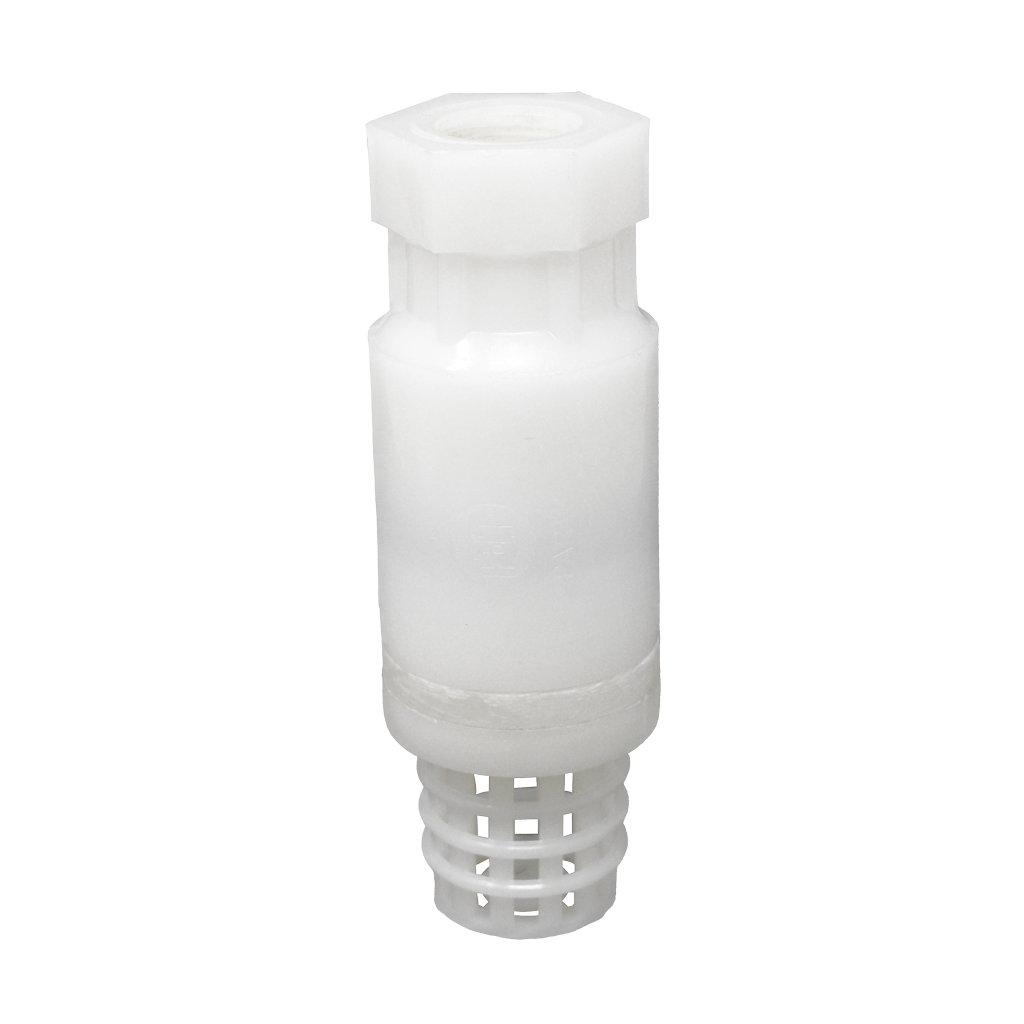

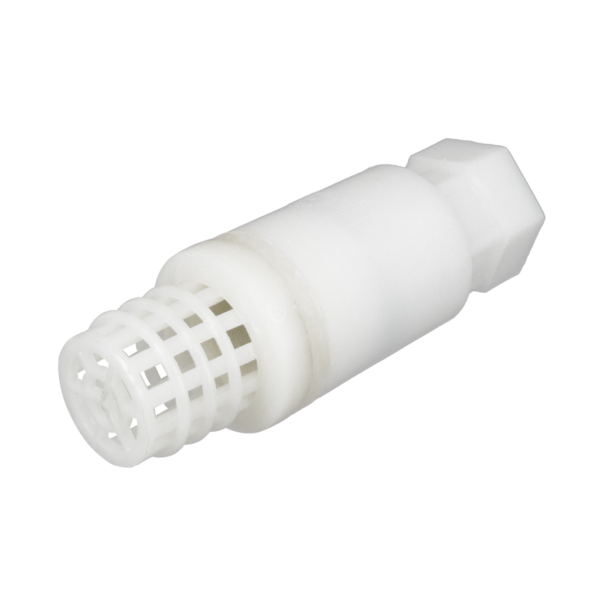

FOOT VALVE – SCREW END

MOC – PP (Polypropylene) / ISO-PP (Isotactic Polypropylene) / HDPE (High-Density Polyethylene) / PP-H (Polyethylene – Homopolymer) AND PVDF (Polyvinylidene Fluoride)

Construction: Ball type, Soft seated

Design And Manufacturing Std.: As per the manufacturer’s standard

End Connections: Screw end (BSP thread)

Available Size: 1″ (25 NB) to 4″ (100 NB)

Note: We will also provide alterations in: • SS 316 Parts (Stem, Fasteners) • Glass Filled Ball, PVDF Ball, • ISO-PP + SS • ISO-PP + PVDF • EPDM / Viton Rubber and PTFE coated Rubber. Valves may have our old “PARTH” brand logo.
