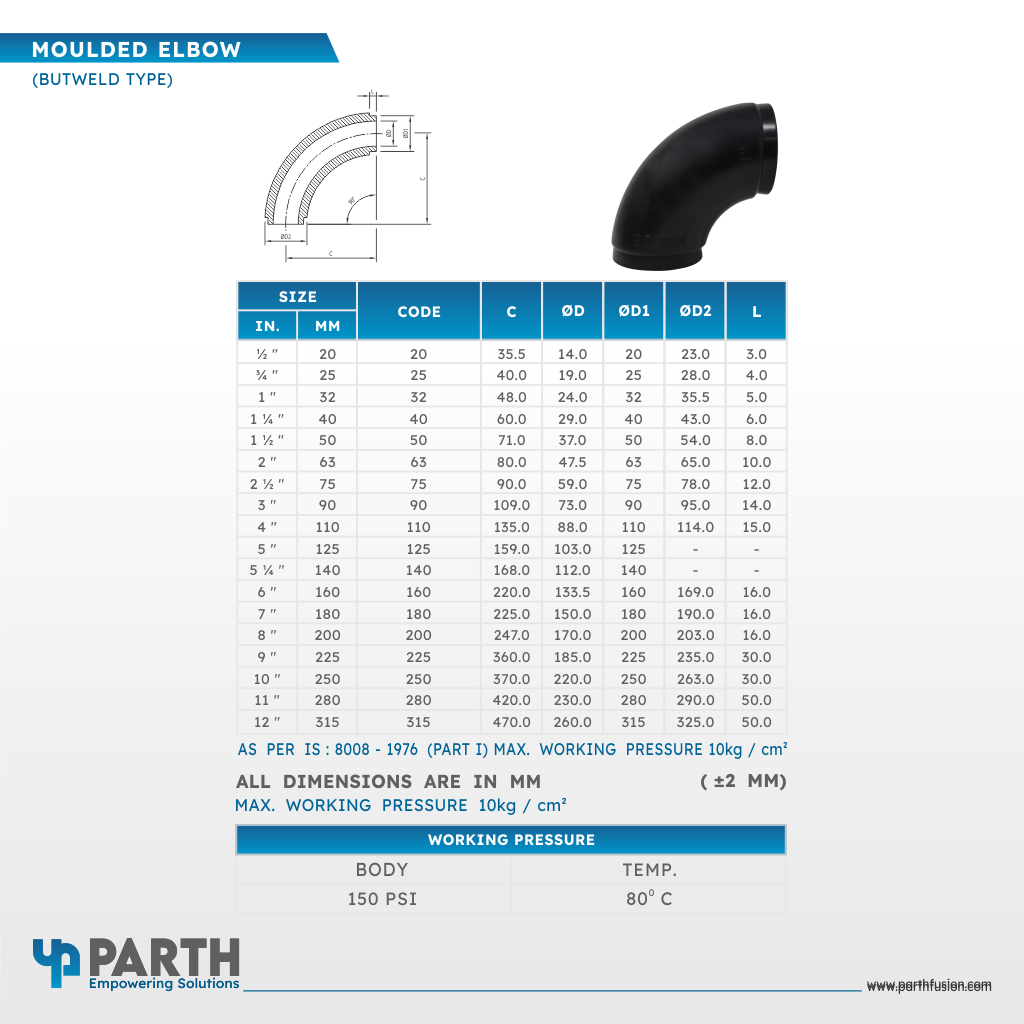

MOULDED ELBOW – (BUTT WELD TYPE)

Fitting Technology: Butt-Fusion Fitting

MOC – PP (Polypropylene) / PPCP – NATURAL (Polypropylene – Copolymer) / ISO-PP (Isotactic Polypropylene) / HDPE (High-Density Polyethylene) / PP-H (Polypropylene – Homopolymer) and PVDF (Polyvinylidene Fluoride)

As Per IS: 8008 – 1976 (PART VI)

Max. Working Pressure and Temp.: 10kg / cm² / 150 PSI at 80* C

Available Size: ½” (20 MM) to 12″ (315 MM)

Note: Fitting may have our old “PARTH” Logo
