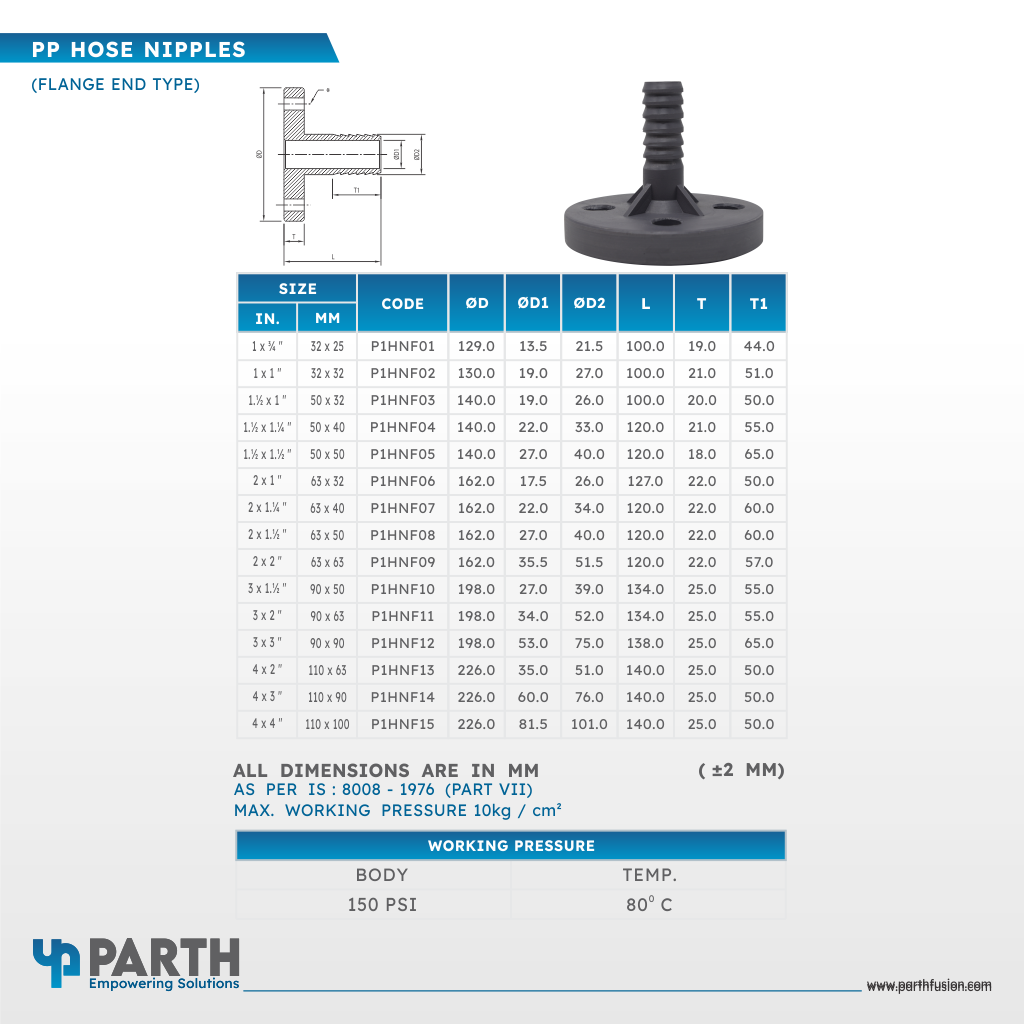

PP HOSE NIPPLES – (FLANGE END TYPE)

Fitting Technology: Butt-Fusion Fitting

MOC – PP (Polypropylene) / PPCP – NATURAL (Polypropylene – Copolymer) / ISO-PP (Isotactic Polypropylene) / HDPE (High-Density Polyethylene) / PP-H (Polypropylene – Homopolymer) and PVDF (Polyvinylidene Fluoride)

Design And Manufacturing Std.: As per the manufacturer’s standard

Max. Working Pressure and Temp.: 10kg / cm² / 150 PSI at 80* C

End Connections: Flanged as per ANSI B 16.5 (ASA 150) and BS 10 (Table D/E/F) & DIN STD.

Available Size: 1 x ¾” (32 MM x 25 MM) to 4″ x 4″ (100 MM x 100 MM)

Note: Fitting may have our old “PARTH” Logo
